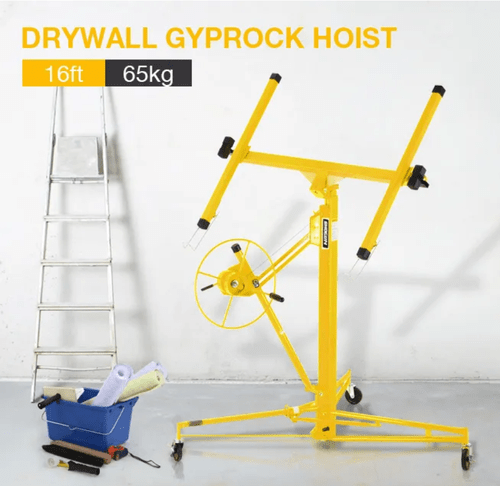

Shogun 16ft-65KG Drywall Panel Lift

Features:
Fit for Different Size of Drywall Panel : 114x124cm ~ 122 X488cm
Lift Cradle Lowers to 86.4CM Off The Floor For Easy Panel Loading
Supports Up To 65kgs

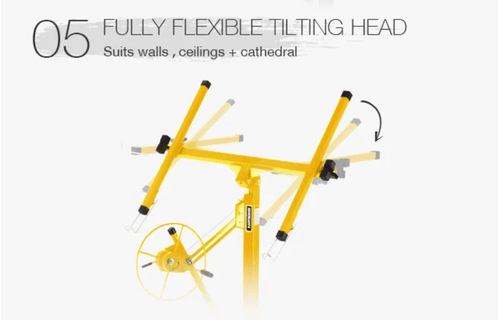

Hoist/Tilt with Spring Loaded Head
3 X Heavy Duty Casters with Brakes

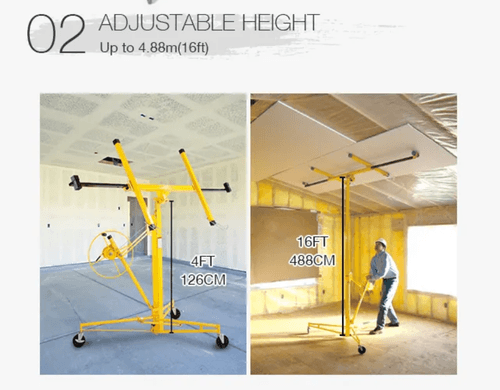

Maximum Height-16 Ft. /4.88m approx.
Drywall Panel/Sheet Size Capacity- 4 Ft. (1.22m) X 16 Ft. (4.88m)
Maximum Length of Cradle-3.6 Ft. (1.15m) X 9.5 Ft. (2.95m)
Height between Cradle and Floor - 1.37m
Specification:

Material
Solid Steel

Product size (LxWxH)

127cm x 76cm x137.5cm approx.

Packing dimensions (LxWxH)
(1)11FT DRYWALL HOIST 130cm x 50cm x 17cm
(2)16FT Extension Bar

187cm x 10cm x 6.5cm

Product weight

1) 41.52kg
2) 7.8kg
